Using Git with Entropy Data | Pull, Push, and PR Workflows

Using Git in your company can take many forms. We cover the most common use cases with Git support in Entropy Data. This article covers "Git as the leader", "Entropy Data as the leader (trunk-based)", and "Entropy Data as editor (with PR workflows)".

Prerequisites

For this Learn article, we assume that you know how to set up Git and connect data products and data contracts with their corresponding Git repositories. You can read more about this in the documentation.

The most important thing to remember here is that there are separate connections for data products and data contracts. The granularity is as follows: one object in Entropy Data is connected to "one file in one Git repository in one branch".

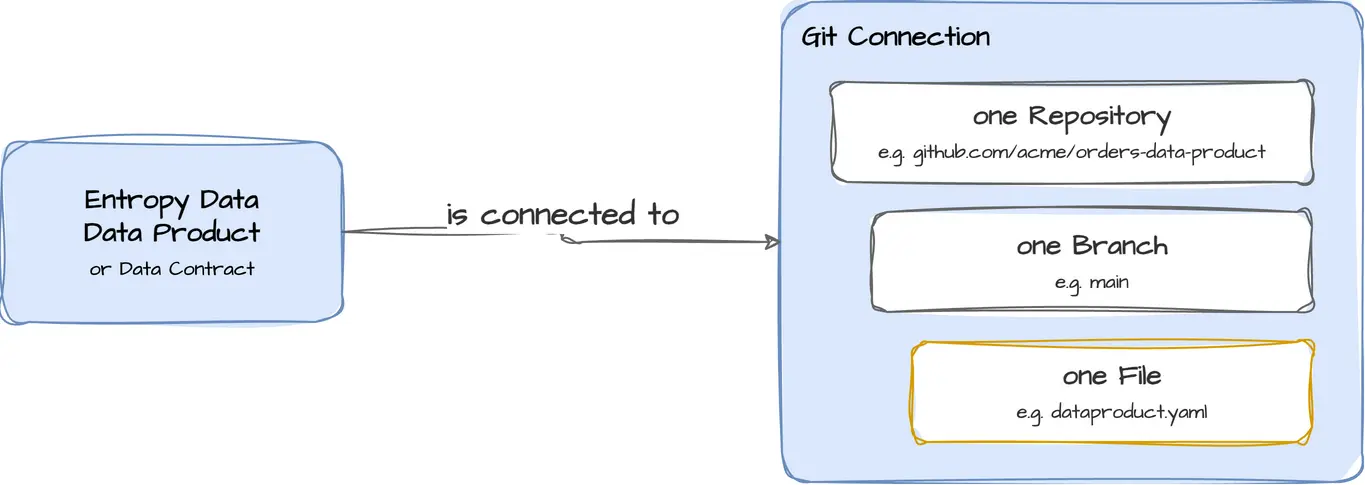

A data product or data contract in Entropy Data is connected to one Git connection, which is one repository, one branch, and one file taken together

Recommended Repository Structure

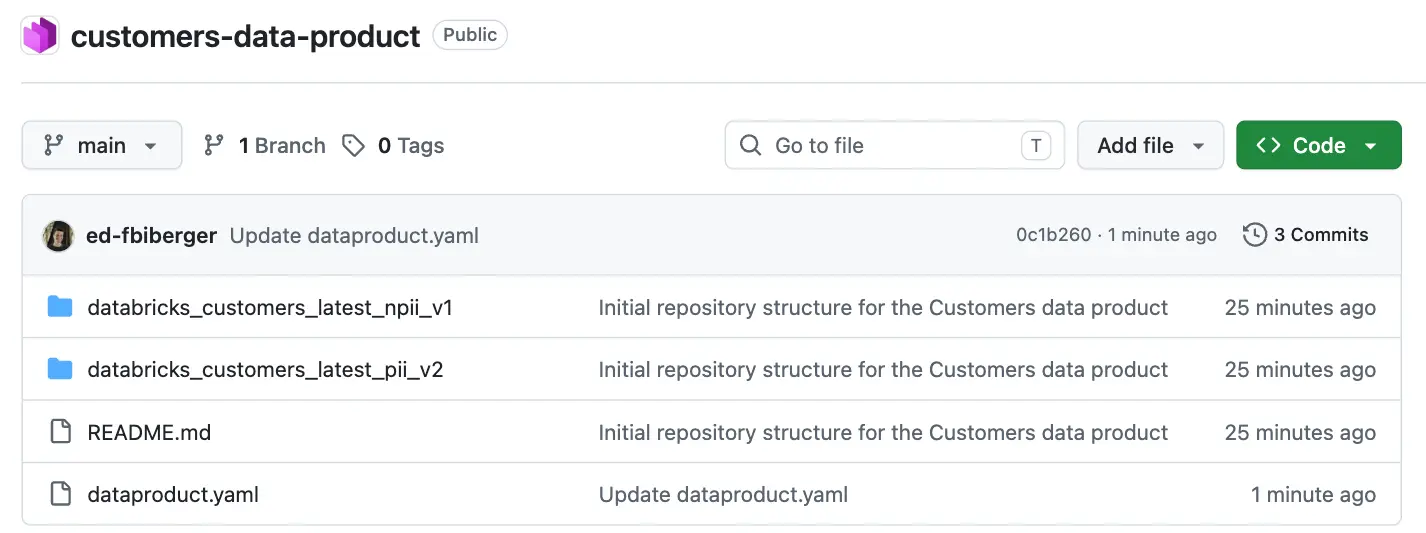

A GitHub repository showing the recommended structure: the dataproduct.yaml in the root folder and one sub-folder per output port containing the data contract YAML files

We recommend using one repository per data product. The data product YAML file resides in the root folder, together with the other files the data product needs.

Each output port has its own sub-folder, and the data contract YAML files go into that sub-folder.

Git as the leader

The first use case is to use Entropy Data as the visualization layer for your data products. The repository is the single source of truth and contains all code artifacts as well as the data product and data contract YAML files.

When a file gets updated, the changes are synced via a Git pull in Entropy Data:

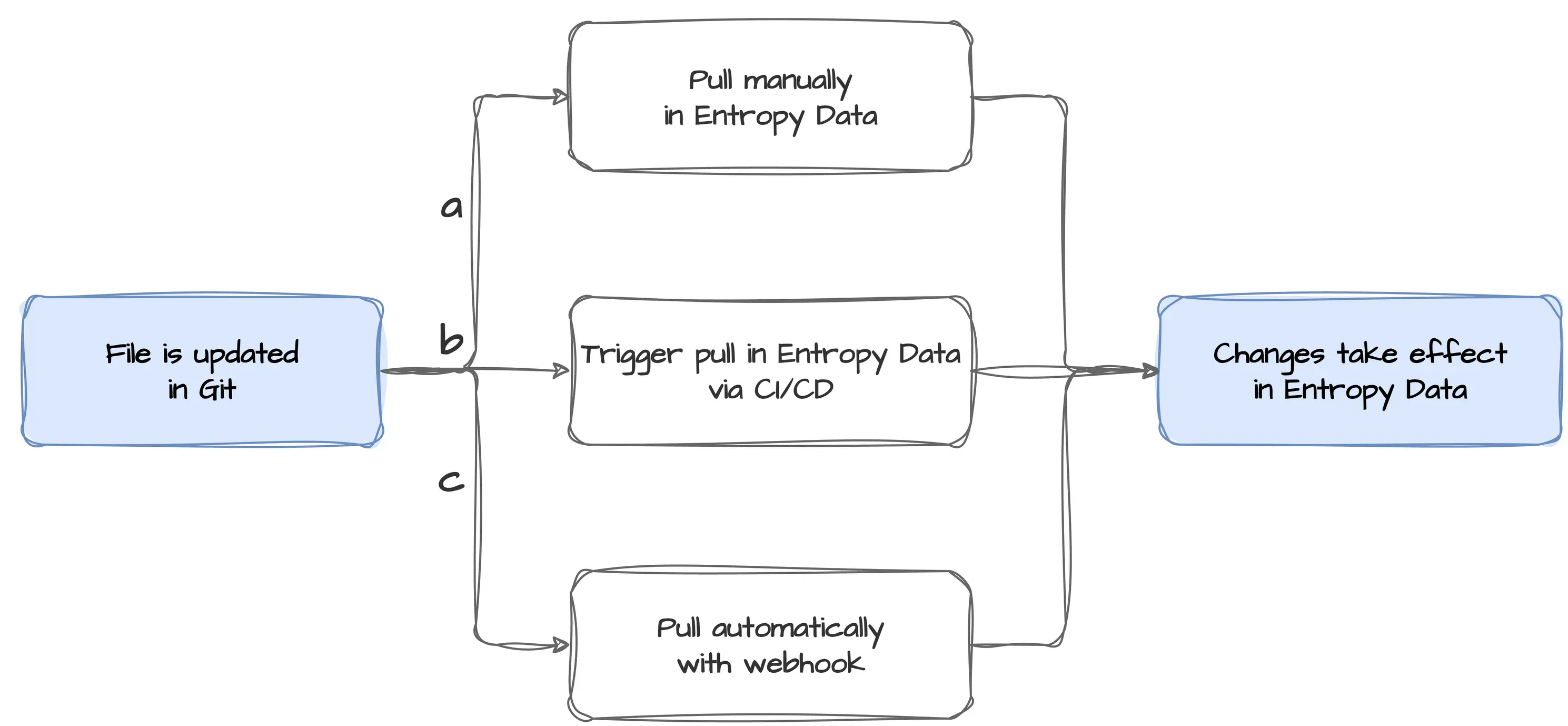

A file updated in Git reaches Entropy Data via a manual pull, a CI/CD-triggered pull, or a webhook

As you can see, there are multiple manual and automatic ways to integrate your workflows with Entropy Data in this case.

a) Pull manually

As soon as Entropy Data detects a change on the Git side, it displays a "Pull" button in the Git connection card when you open a connected data product or data contract. If you select it, the YAML is pulled from Git, the data product or data contract is updated in Entropy Data, and all changes take effect immediately.

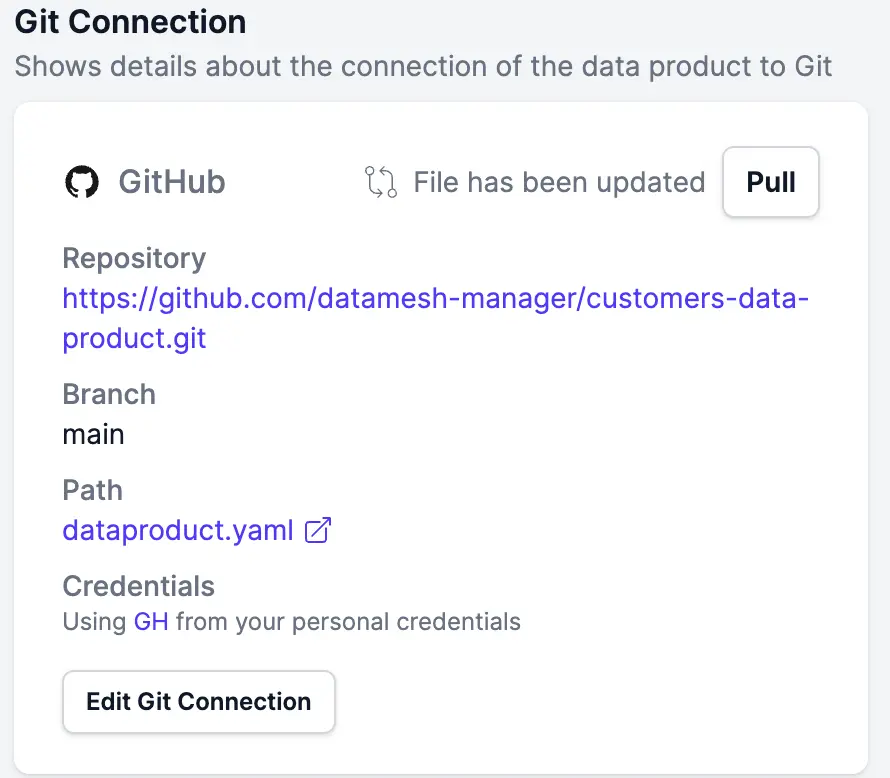

The Git connection card showing 'File has been updated' and a Pull button after the connected file changed in Git

b) Trigger a pull via the Entropy Data CLI or REST API in CI/CD

You can also trigger a pull for a file in your CI/CD pipeline. All you need is the unique identifier of your resource. See the Entropy Data REST API for more information about which requests are available. We plan to add support for Git pull in the Entropy Data CLI soon.

c) Enable webhook sync

When setting up the connection for your resource, Entropy Data generates a unique Webhook URL, shown in the Auto Sync Git to Entropy Data section of the Git connection dialog. Copy this URL and create a webhook for it in your Git provider (for example, in the repository settings on GitHub). From then on, whenever commits are pushed to the connected repository, the file is updated in Entropy Data automatically. If the webhook fails for some reason, you may need to pull manually; your Git provider will inform you about failed webhook calls. To debug problems here, have a look at our documentation.

Entropy Data as the leader (trunk-based)

If you want to benefit from the editing capabilities of Entropy Data, you can use a trunk-based approach to development. This means that all contributors to a repository work on the main branch and commit changes frequently. If Entropy Data is the only tool used to work on the files in Git, the workflow for this way of development is straightforward:

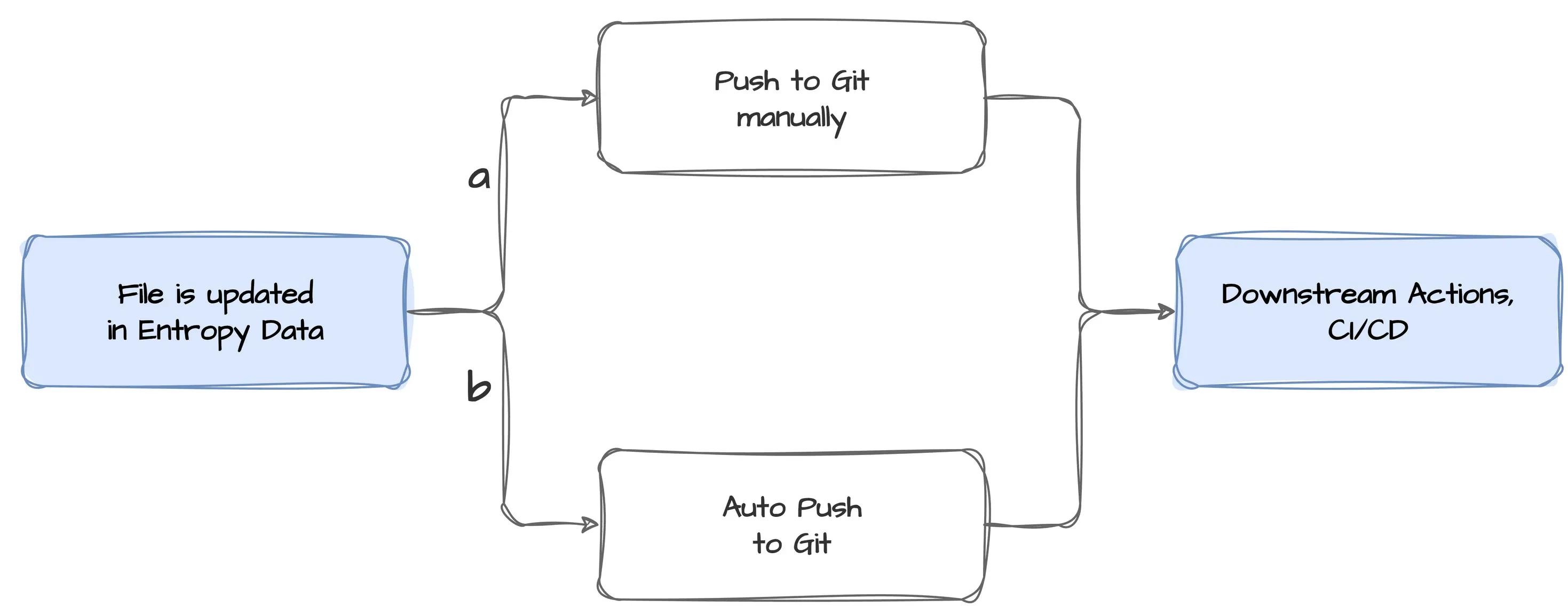

A file updated in Entropy Data reaches Git via a manual push or Auto Push, then triggers downstream actions

a) Push to Git manually

You edit the resource in as many steps as you want with the Entropy Data editors and then decide that a new iteration in Git is due. You select the "Push" button, which is shown automatically whenever Entropy Data detects changes to a resource. You can choose between "Push Directly" and "Create Pull Request" (see below). For trunk-based development, choose "Push Directly", and the file is updated in Git.

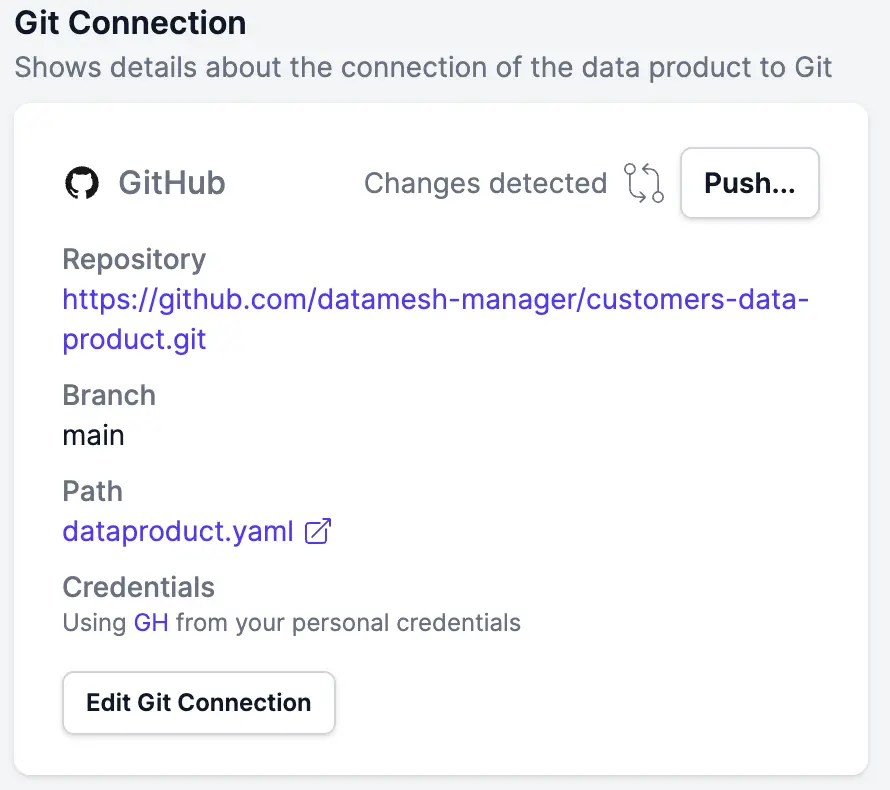

The Git connection card showing 'Changes detected' and a Push button

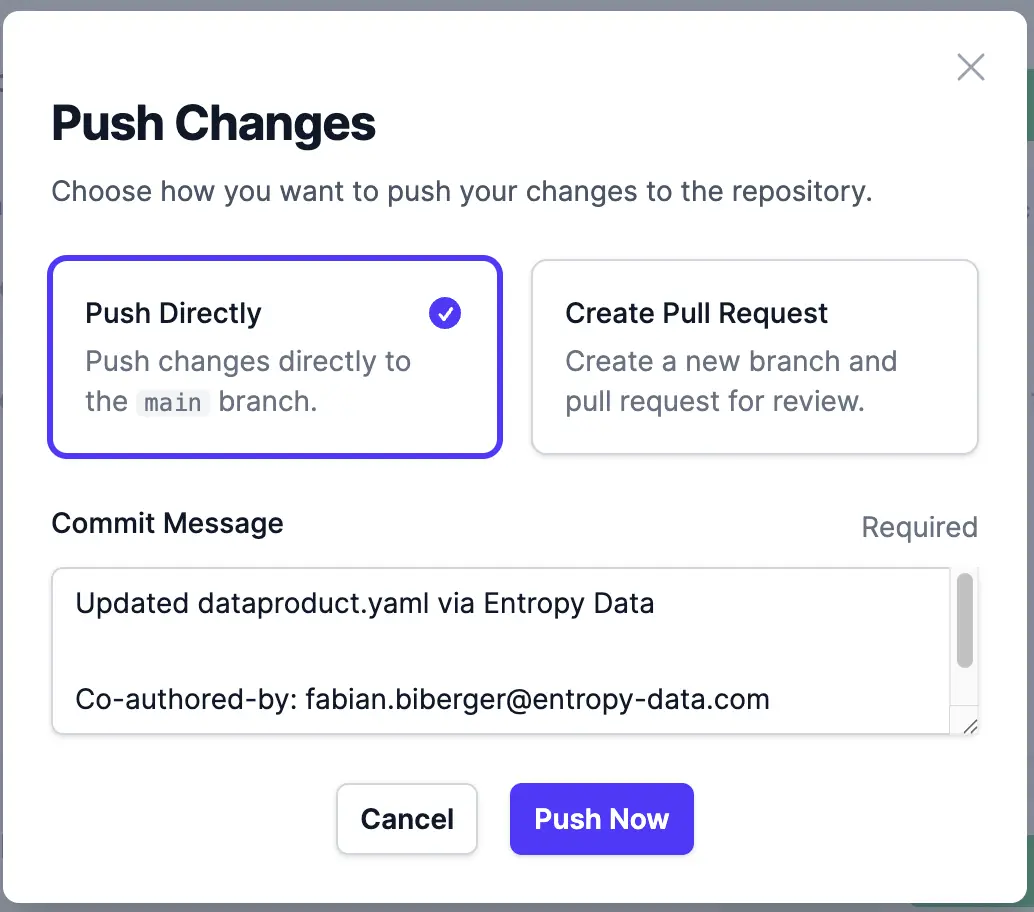

The Push Changes modal with the choice between Push Directly and Create Pull Request, with Push Directly selected and a commit message

All downstream actions that depend on a Git push are triggered according to your CI/CD pipelines, other hooks, listeners, and so on.

b) Enable Auto Push

You can also enable the "Auto Push" option when creating a Git connection for a resource. In that case, every save on a data product or a data contract is automatically pushed to the connected file on the connected branch in Git.

Downstream actions fire again whenever such a change happens.

Entropy Data as editor (with PR workflows)

Many organizations use a protected main branch to have deeper control over the changes that are deployed to their production environments. For those cases, Entropy Data supports pull requests and merge requests (for easier readability, referred to as PRs from here on).

In this Learn article, we assume that you use Entropy Data to edit data products and data contracts and then want to update the files in Git afterwards.

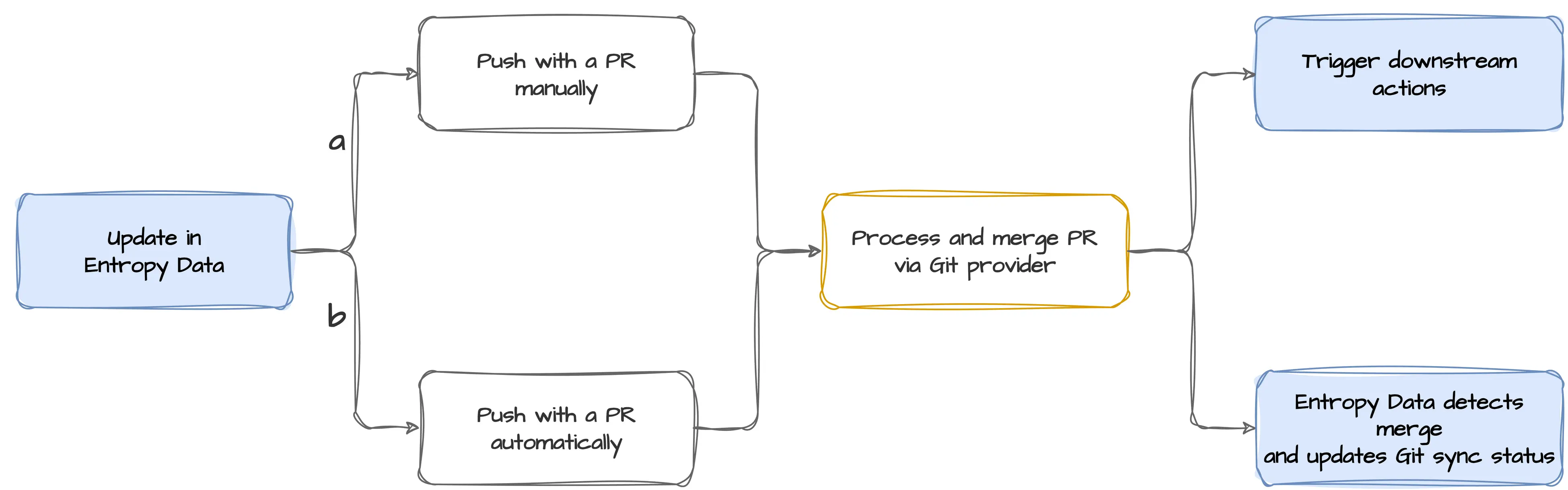

An update in Entropy Data is pushed to a PR manually or automatically; merging the PR triggers downstream actions and updates the Git sync status

a) Push with a PR manually

As already described above, a "Push" button appears on the Git connection card for any change that is present in Entropy Data but not yet synced with Git.

If you want to use the PR approach, select the option "Create Pull Request" in the modal that appears.

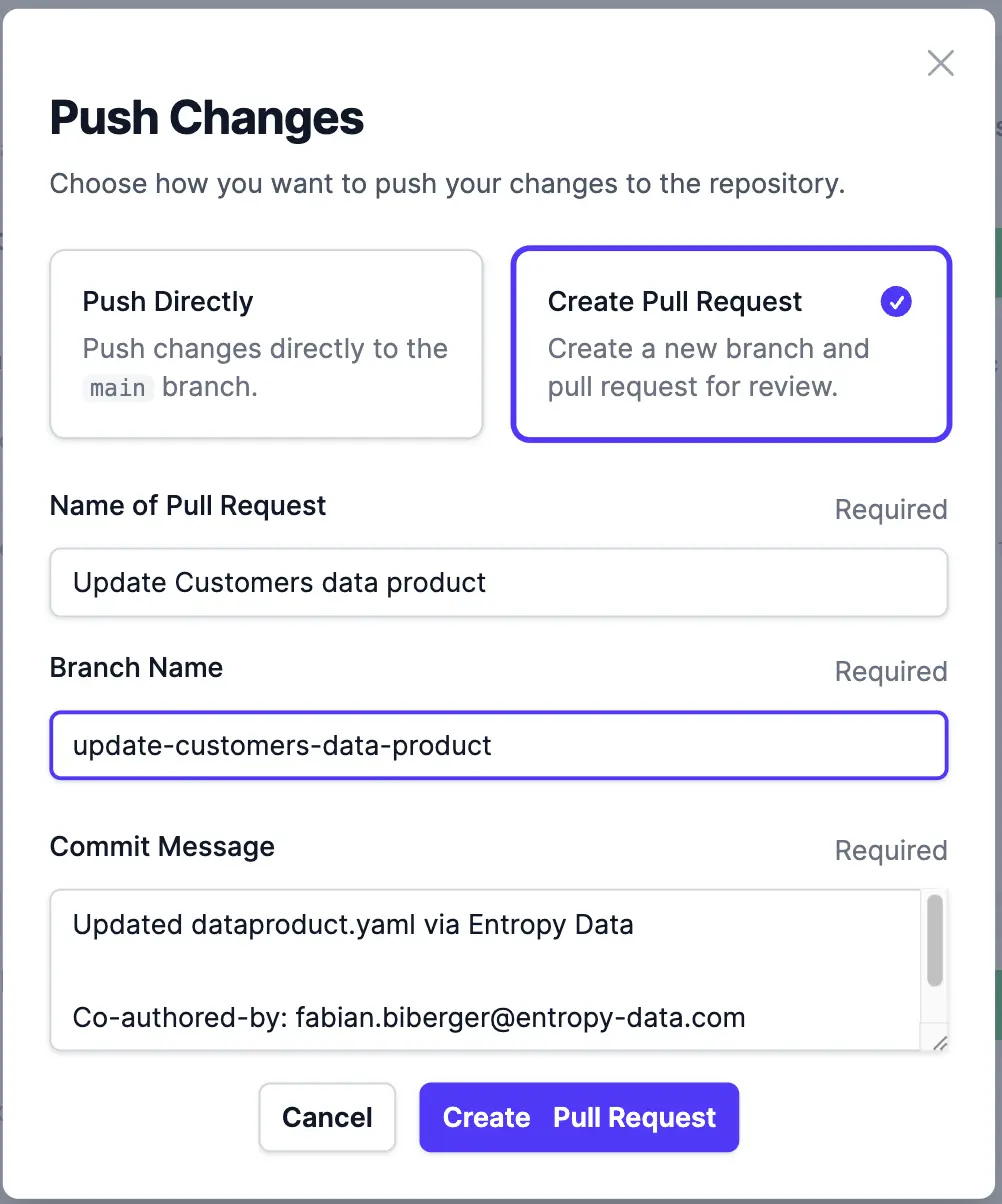

The Push Changes modal with Create Pull Request selected, showing fields for the PR name, branch name, and commit message

As you would expect, the UI lets you name the branch to be created, the PR title, and the commit message.

Once you have confirmed your choices, Entropy Data creates a new branch in the connected repository, commits and pushes the changes to that branch, and opens a new PR in your Git provider. Pending PRs are displayed in the Git connection card of your resource.

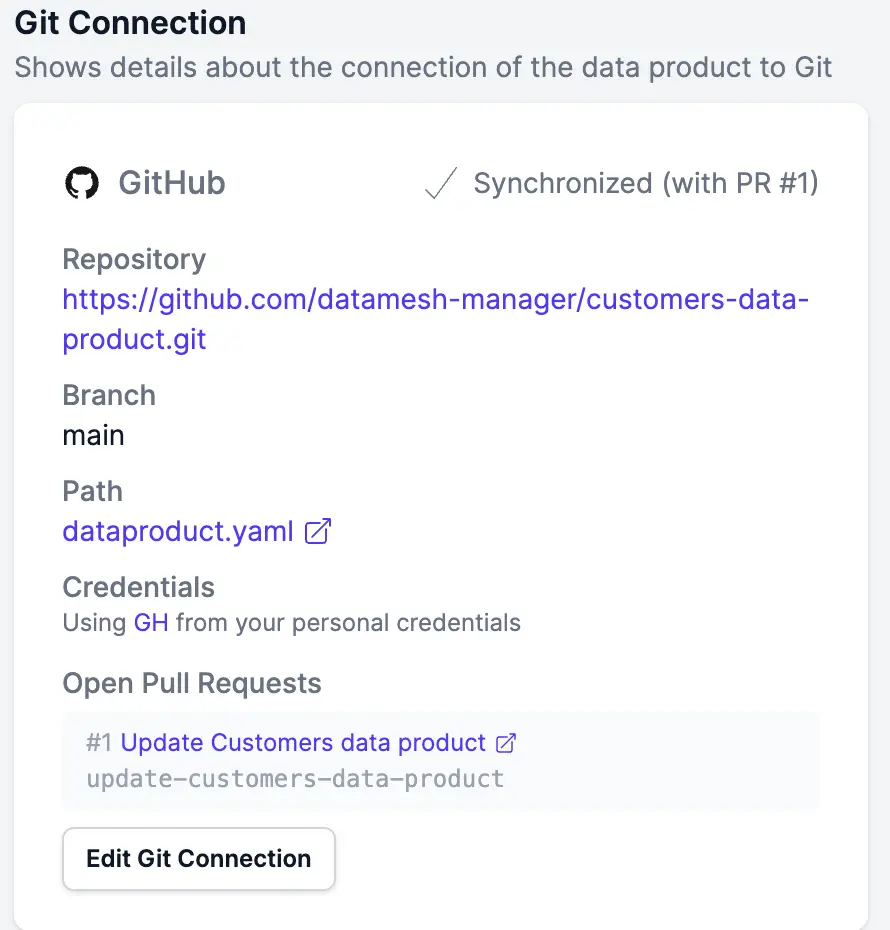

The Git connection card showing 'Synchronized (with PR #1)' and the open pull request with a link out to the Git provider

Your team can then follow your default workflows for changes, such as code reviews and automated tests. You can still use Entropy Data to apply changes on top of the PR and push them to the PR branch as long as it is still open.

When everything is complete and the PR is merged, Entropy Data automatically detects the closed PR and updates the sync status.

Note

When you decide to use this approach, keep in mind that the object in Entropy Data (for example, the data contract) will not be in sync with the repository version for as long as the PR is open.

After the merge, your default actions are triggered, just as usual.

b) Push with a PR automatically

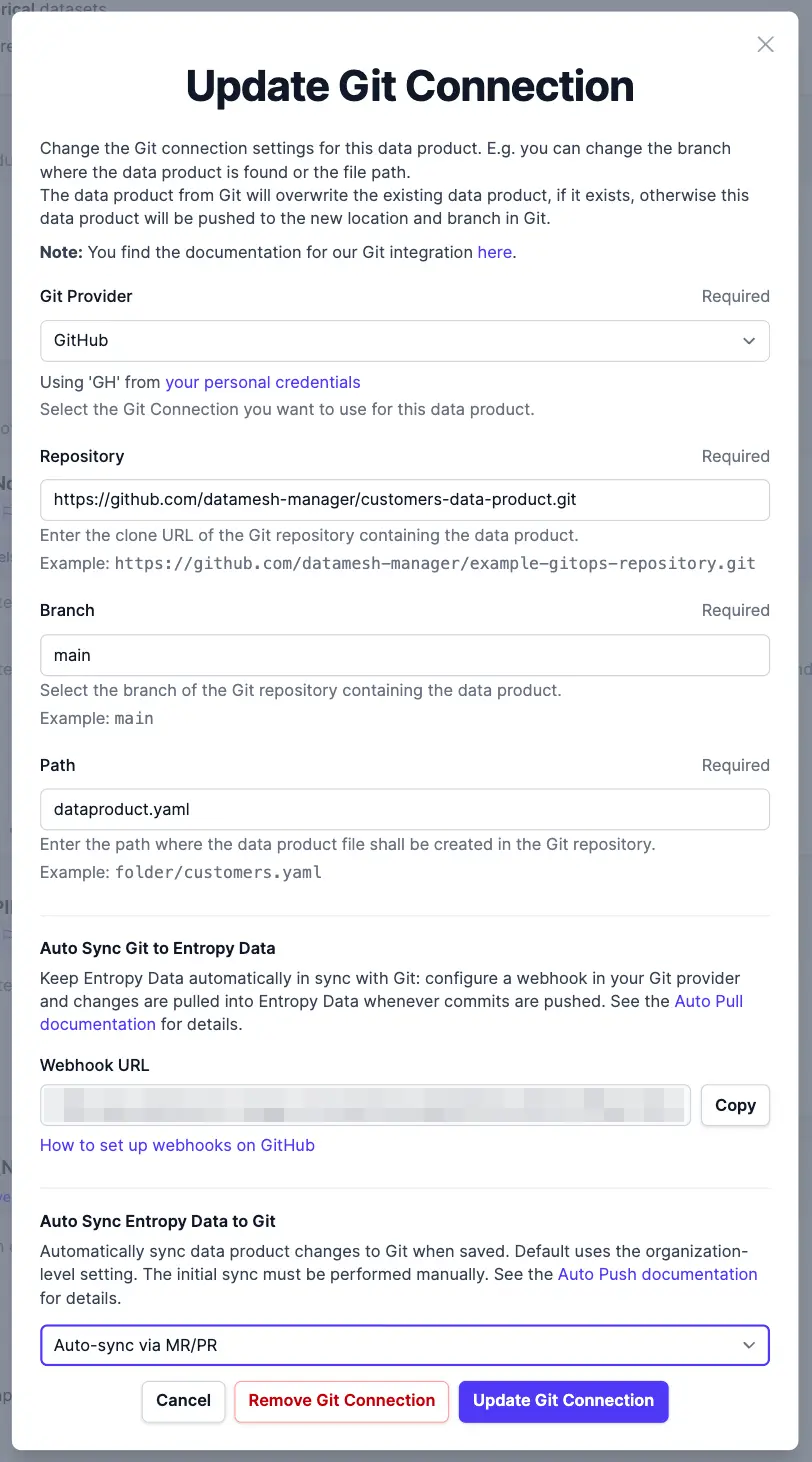

The Git connection dialog with the 'Auto Sync Entropy Data to Git' option set to 'Auto-sync via MR/PR'

If you have enabled the option to auto-push to a PR when creating the Git connection, the workflow is more or less the same, but some steps happen implicitly. If a PR is already pending, changes are automatically committed and pushed to that PR's branch. Otherwise, a new PR is created with your default settings for branch, PR name, and commit message.

Once all changes are done, everything described above for the manual process applies here as well.
